Toner Powder Filled PTFE - Senxin Corporation

The suspended polytetrafluoroethylene resin and toner powder are mixed according to a certain proportion and processed by molding and cutting. Has Excellent temperature resistance, creep resistance, compressive strength, insulation and low friction coefficient. Makes the white teflon a variety of colors.

Property

PROPERTY	UNITS	METHOD	VALUE
Specific gravity	g / cm³	ASTM D4894	3.1+3.2
Tensile CD	Mpa	ASTM D4894	24-26
ElongationCD	%	ASTM D4894	250-270
Hardness 1	Shore D	ASTM D2240	62-64
Diametric Shrinkage	%	INTERNAL	1.5-2

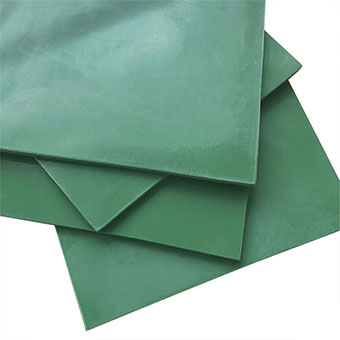

Toner powder Filled PTFE Sheet

Type	Thickness(mm)	Width(mm）	Length（mm）
PTFE Molded Sheet	3~100	150~2000	Max 2000

Toner powder Filled PTFE Rod Size

Type(mm)	Diameter(mm)	Length(mm)
PTFE Extruded Rod	4,5,6,7,8,9,10,13,15,16,18,20,25,30,35,40,45,50, 55,60,65,70,75,80,85,90,100,120,110,120,130, 140,150,160,170,180,190,200,	1000,2000,3000 As Customers' Request
PTFE Molded Rod	180,200,250,270,300,350,400,500,600	100-300

Toner powder Filled PTFE Tube Size

Type	OD(mm)	ID(mm)	Length(mm)
PTFE Extruded Tube	13~213	5.2~196	500~4000
PTFE Molded Tube	30~1323	10~1217	100~300

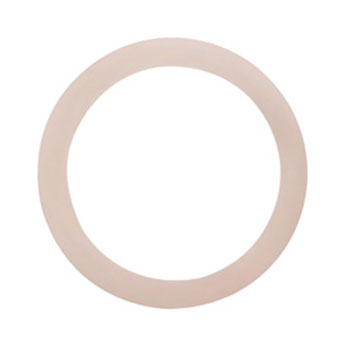

Toner powder Filled PTFE Gasket Size

Code	Outside Diameter(mm)	Inside Diameter(mm)
	RF GASKET LIST
10A~600A	53~700	18~615
	FF GASKET LIST
10A~600A	90~795	18~614

Product Name: Toner Powder Filled PTFE

Class Name: Modified PTFE
