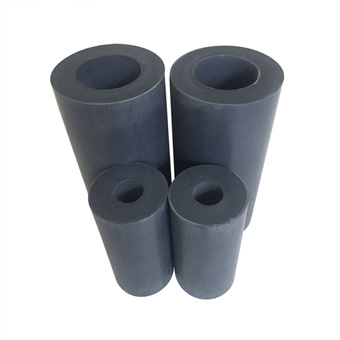

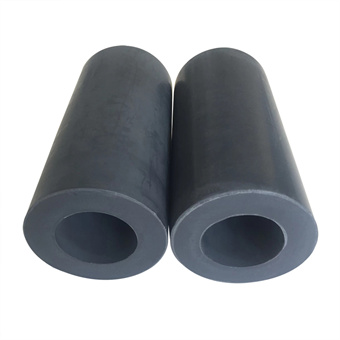

PTFE filled molybdenum disulfide

Product Name: PTFE filled molybdenum disulfide

Class Name: Modified PTFE

Date: 2022-07-13 Reading times: 236

INTRODUCTION

PARAMETERS

CONSULTATION

PTFE filled molybdenum disulfide can increase the surface hardness and reduce the initial wear. It is generally used with bronze powder and glass fiber. Suitable for high voltage nozzle.

PTFE filled molybdenum disulfide Property

PROPERTY	UNITS	METHOD	VALUE
Specific gravity	g / cm³	ASTM D4894	2．17+/-0.05
Tensile CD	Mpa	ASTM D4894	30-33
ElongationCD	%	ASTM D4894	300-330
Hardness 1	Shore D	ASTM D2240	54-56

PTFE filled bronze,carbon fiber and molybdenum disulfide Property

PROPERTY	UNITS	METHOD	VALUE
Specific gravity	g / cm³	ASTM D4894	2.15-2.25
Tensile CD	Mpa	ASTM D4894	20-25
ElongationCD	%	ASTM D4894	240-270
Hardness 1	Shore D	ASTM D2240	58-61
Diametric Shrinkage	%	INTERNAL	1.6-2

PTFE filled bronze and molybdenum disulfide Property

PROPERTY	UNITS	METHOD	VALUE
Specific gravity	g / cm³	ASTM D4894	3.8-4.0
Tensile CD	Mpa	ASTM D4894	20-24
ElongationCD	%	ASTM D4894	145-165
Hardness 1	Shore D	ASTM D2240	63-65
Diametric Shrinkage	%	INTERNAL	1.35-1.5

PTFE filled glass fiber and molybdenum disulfide Property

PROPERTY	UNITS	METHOD	VALUE
Specific gravity	g / cm³	ASTM D4894	2.17-2.2
Tensile CD	Mpa	ASTM D4894	20-25
ElongationCD	%	ASTM D4894	240-270
Hardness 1	Shore D	ASTM D2240	59-61
Diametric Shrinkage	%	INTERNAL	1.6-2

Type	Thickness(mm)	Width(mm)	Length(mm)
PTFE Molded Sheet	3~100	150~2000	Max 2000

Type	Diameter(mm)	Length(mm)
PTFE Extruded Rod	4,5,6,7,8,9,10,13,15,16,18,20,25,30,35,40,45,50, 55,60,65,70,75,80,85,90,100,120,110,120,130, 140,150,160,170,180,190,200,	1000,2000,3000As Customers' Request
PTFE Molded Rod	180,200,250,270,300,350,400,500,600	100-300

Type	OD(mm)	ID(mm)	Length(mm)
PTFE Extruded Tube	13~213e	5.2~196	500~4000
PTFE Molded Tube	30~1323	10~1217	100~300

Code	Outside Diameter(mm)	Inside Diameter(mm)
	RF GASKET LIST
10A~600A	53~700	18~615
	FF GASKET LIST
10A~600A	90~795	18~614
