Graphite Filled PTFE - Senxin Corporation

PTFE filled graphite, and the finished product is black, which has good electrical conductivity, wear resistance, and can improve the lubricity of filled PTFE product. Suitable for corrosion resistant environments and can be used in pharmaceutical applications.

PROPERTY	UNITS	METHOD	VALUE
Specific gravity	g / cm³	ASTM D4894	2.16+/-0.02
Tensile CD	Mpa	ASTM D4894	22-24
ElongationCD	%	ASTM D4894	210-230
Hardness 1	Shore D	ASTM D2240	58-60
Diametric Shrinkage	%	INTERNAL	2.1-2.4

Type	Thickness(mm)	Width(mm)	Length(mm)
PTFE Molded Sheet	3~100	150~2000	Max 2000
PTFE Skived Sheet	0.2~6.5	300~2700	≥200
PTFE Skived Tape	0.1~4.0	100~500	≥1000

Type	Diameter(mm)	Length(mm)
PTFE Extruded Rod	4,5,6,7,8,9,10,13,15,16,18,20,25,30,35,40,45,50, 55,60,65,70,75,80,85,90,100,120,110,120,130, 140,150,160,170,180,190,200,	1000,2000,3000As Customers' Request
PTFE Molded Rod	180,200,250,270,300,350,400,500,600	100-300

Type	OD(mm)	ID(mm)	Length(mm)
PTFE Extruded Tube	13~213	5.2~196	500~4000
PTFE Molded Tube	30~1323	10~1217	100~300

Code	Outside Diameter(mm)	Inside Diameter(mm)

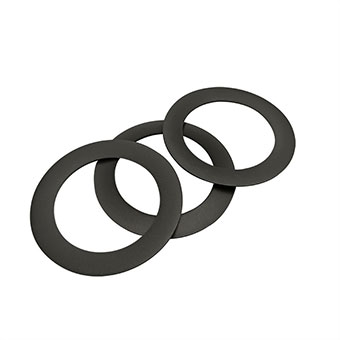

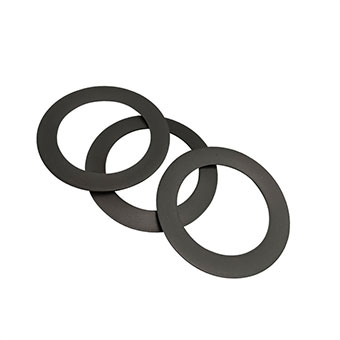

	RF GASKET LIST
10A~600A	53~700	18~615
	FF GASKET LIST
10A~600A	90~795	18~614

Product Name: Graphite Filled PTFE

Class Name: Modified PTFE
