Description

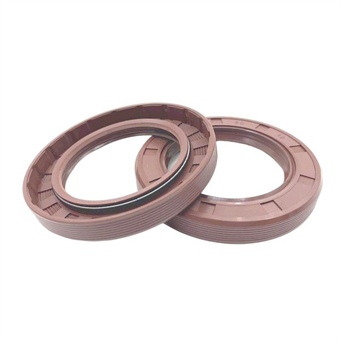

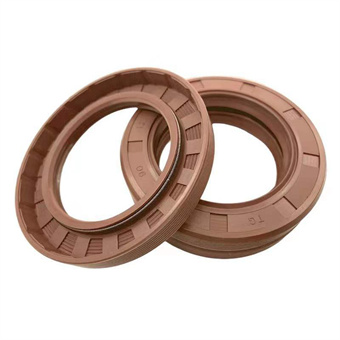

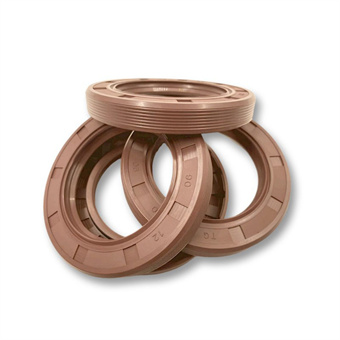

Skeleton oil seal is a typical representative of the oil seal, generally speaking, the oil seal refers to the skeleton oil seal. The function of the oil seal is generally to isolate the parts that need lubrication in the transmission parts from the external environment, so as not to let the lubricating oil leakage. FKM rubber oil seal is processed with fluorine rubber as raw material, which is a kind of skeleton oil seal.

Advantage

1、Oil resistance, corrosion resistance, solvent resistance, high mechanical strength resistance, non-toxic, meet the requirements of environmental protection.

2、 Oil seal structure is simple, easy to manufacture.

3、light weight oil seal, less supplies.

4、 Good sealing function, long service life.

5、Easy to disassemble oil seal, convenient inspection.

Application

Auto Parts, cylinders, oil presses, oil pumps, bearing vehicles, sensors, medical, pharmaceutical, valves, pumps, bearings, electrical appliances, rockets and other requirements have resistance to vacuum, friction, high temperature, chemical corrosion, and so on, such as: shaft with oil seals, oil seals with holes.

TYPE

TC Skeleton Oil Seal, TB skeleton oil seal, TC Skeleton Oil Seal, single lip skeleton oil seal, double lip skeleton oil seal, outer skeleton oil seal, inner skeleton oil seal.

Item	Unit	Data
Tensile strength	Mpa	10~20
Elongation	%	150~30
Tearing strength	KN/m	20~40
coefficient of friction		0.8

ID(mm)	OD(mm)	High(mm)
10~280	25~320	4~23
