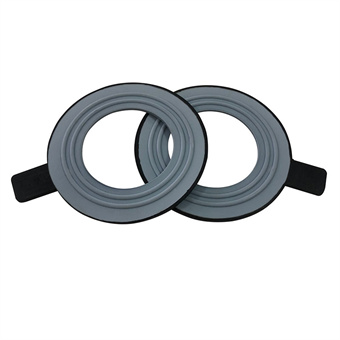

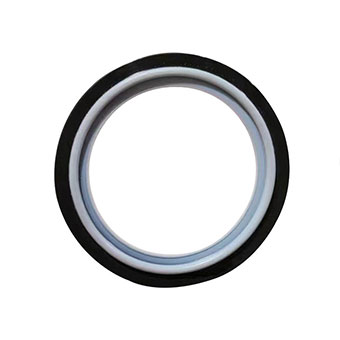

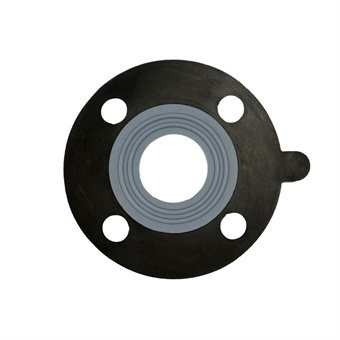

Product Name: EPDM Coated PTFE gasket
Class Name: Sealing Product
Date: 2022-07-13 Reading times: 394
PTFE + EPDM rubber gasket is made of advanced epdm epdm or nbr nbr as the main body, and is made of 100% pure PTFE shell with special activation treatment in its effective sealing part.
Advantage
- This gasket is suitable for ptfe, frp, pvdf, pp, steel lined po pipe, enameled glass equipment pipe, cast iron or ductile cast iron flange.
- Raised seal ring, not only has a double sealing line, sealing performance double insurance, but also greatly reduce the gasket and flange sealing contact surface, can maintain a high sealing specific pressure,thereby reducing 75% the torque load applied to the bolt.
- 100% pure ptfe sealing surface provides a clean, pollution-free sealing surface, while also having excellent chemical resistance.
- Unique composite process, the ptfe firmly adhere to the rubber elastomer, prevent delamination and leakage.
Application
It can be used in various mechanical equipment in pharmaceutical, electronic, chemical, antistatic, flame retardant, food and other industries, acting as gasket, seal, buffer and so on.
Size
Production standard |
Production specification |
Class150 |
1/2”`44” |
JIS-10K |
1/2”~44” |
PN |
DN15~DN1000 |
