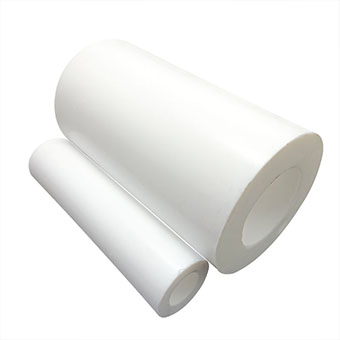

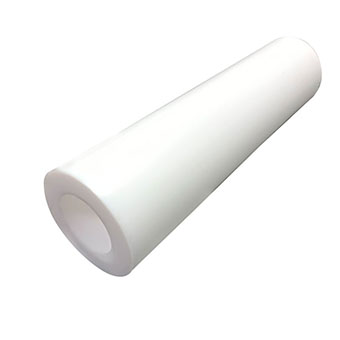

Product Name: PTFE Tube/Pipe

Class Name: PTFE Product

Date: 2022-07-16 Reading times: 369

Description

PTFE straight tube is divided into extruded tube and molded tube,using polytetrafluoroethylene suspension polytetrafluoroethylene resin processing.

Advantage

1、High temperature resistance -- operating temperature up to 250℃.
2、Low temperature resistance -- good mechanical toughness; Even when the temperature drops to -196℃, 5% elongation can be maintained.
3、Corrosion resistance - inert to most chemicals and solvents, resistant to strong acids and bases, water and various organic solvents.
4、Weather resistance - has the best aging life of plastics.
5、High lubrication - the lowest friction coefficient of solid materials.
6、Non-adhesion - is the minimum surface tension in solid materials, does not adhere to any material, mechanical properties of its friction coefficient is very small, only 1/5 of polyethylene, which is an important feature of perfluorocarbon surface. And because of the very low intermolecular force of fluorine - carbon chain, ptfe is non-viscous.
7、Non-toxic -- with physiological inertia, as artificial blood vessels and organs implanted in the body for a long time without adverse reactions.

Application

used in machinery, chemical, aviation, electrical and electronic, national defense industry, cutting-edge technology, medical and health and electrical insulation and other fields.

Property

Item Unit Data
Density g/cm3 2.1~2.3
Tensile Strength Mpa 15.0
Elongation At Break % 150
